美国Lansmont IT152-4K 斜面冲击试验机,物流运输件,包装,包裹,水平冲击测试,斜面冲击试验台,符合ASTM D5277,DIN EN ISO 2244-2002等标准(进口.兰斯蒙特)

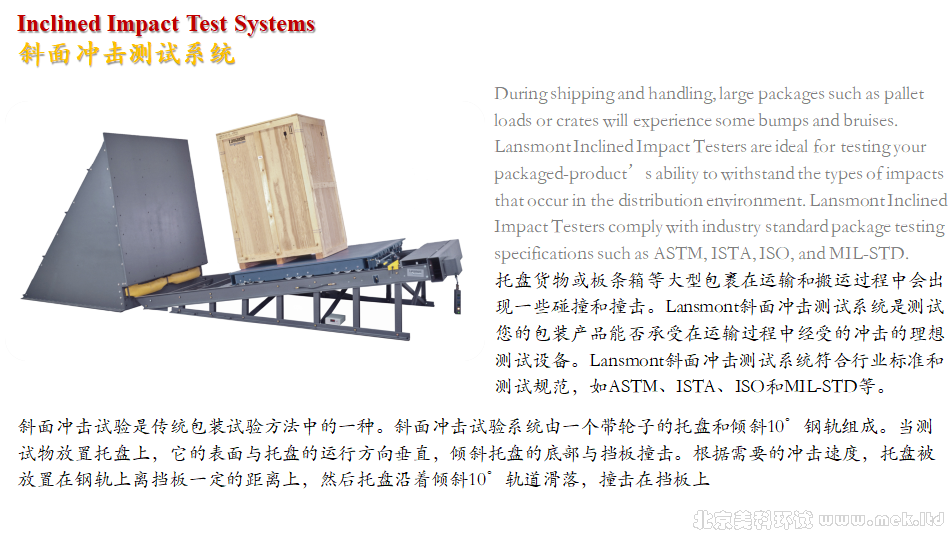

During shipping and handling, large packages such as pallet loads or crates will experience some bumps and bruises. Lansmont Inclined Impact Testers are ideal for testing your packaged-product’s ability to withstand the types of impacts that occur in the distribution environment. Lansmont Inclined Impact Testers comply with industry standard package testing specifications such as ASTM, ISTA, ISO, and MIL-STD.

托盘货物或板条箱等大型包裹在运输和搬运过程中会出现一些碰撞和撞击。Lansmont斜面冲击测试系统是测试您的包装产品能否承受在运输过程中经受的冲击的理想测试设备。Lansmont斜面冲击测试系统符合行业标准和测试规范，如ASTM、ISTA、ISO和MIL-STD等。

斜面冲击试验是传统包装试验方法中的一种。斜面冲击试验系统由一个带轮子的托盘和倾斜10°钢轨组成。当测试物放置托盘上，它的表面与托盘的运行方向垂直，倾斜托盘的底部与挡板撞击。根据需要的冲击速度，托盘被放置在钢轨上离挡板一定的距离上，然后托盘沿着倾斜10°轨道滑落，撞击在挡板上。

参考标准

1.GB 4857.11 包装 运输包装件　水平冲击试验方法

2.GB 4857.15 包装 运输包装件　可控水平冲击试验方法

3.ISO 2244-2000 Packaging-Complete,filled transport packages and unit loads-Horizontal impact tests

4.ASTM D5277 Standard Test Method for Performing Programmed Horizontal Impacts Using an Inclined Impact Tester

5.DIN EN ISO 2244-2002 Verpackung Verstandfertige Packstuckeund Ladeeinheitern Horiontale Stopprufung

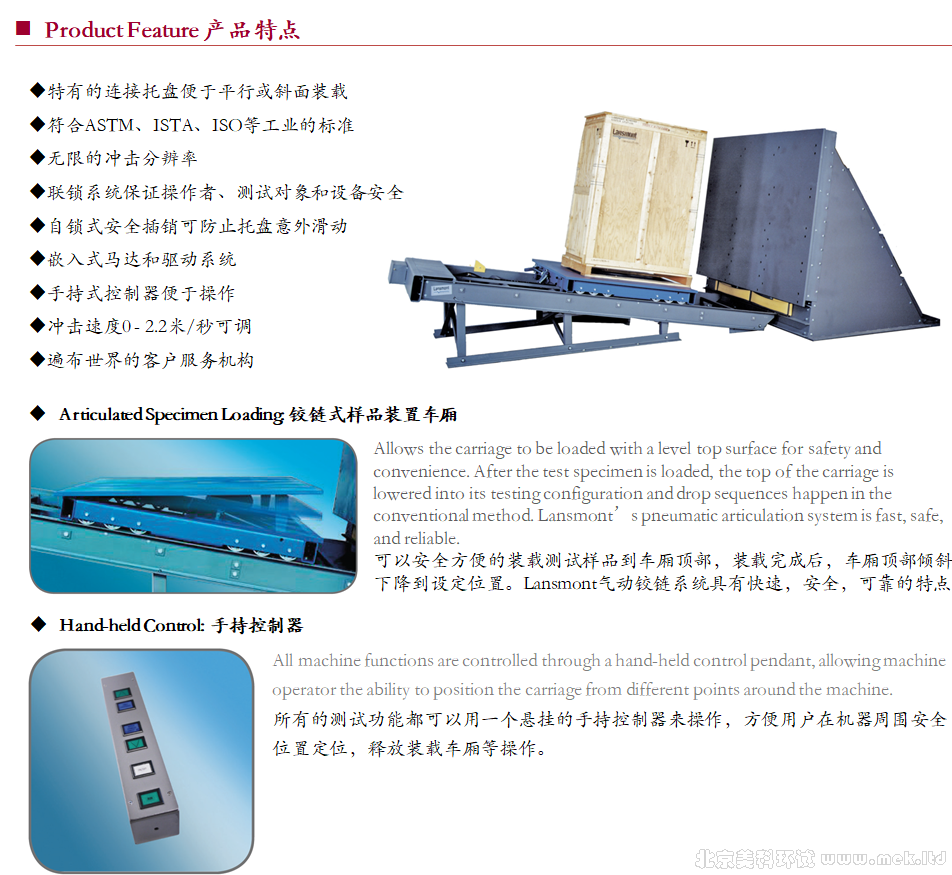

Product Feature 产品特点

特有的连接托盘便于平行或斜面装载

符合ASTM、ISTA、ISO等工业的标准

无限的冲击分辨率

联锁系统保证操作者、测试对象和设备安全

自锁式安全插销可防止托盘意外滑动

嵌入式马达和驱动系统

手持式控制器便于操作

冲击速度0 - 2.2米/秒可调

遍布世界的客户服务机构

Articulated Specimen Loading: 铰链式样品装置车厢

Allows the carriage to be loaded with a level top surface for safety and convenience. After the test specimen is loaded, the top of the carriage is lowered into its testing configuration and drop sequences happen in the conventional method. Lansmont’s pneumatic articulation system is fast, safe, and reliable.

可以安全方便的装载测试样品到车厢顶部，装载完成后，车厢顶部倾斜下降到设定位置。Lansmont气动铰链系统具有快速，安全，可靠的特点。

Hand-held Control: 手持控制器

All machine functions are controlled through a hand-held control pendant, allowing machine operator the ability to position the carriage from different points around the machine.

所有的测试功能都可以用一个悬挂的手持控制器来操作，方便用户在机器周围安全位置定位，释放装载车厢等操作。

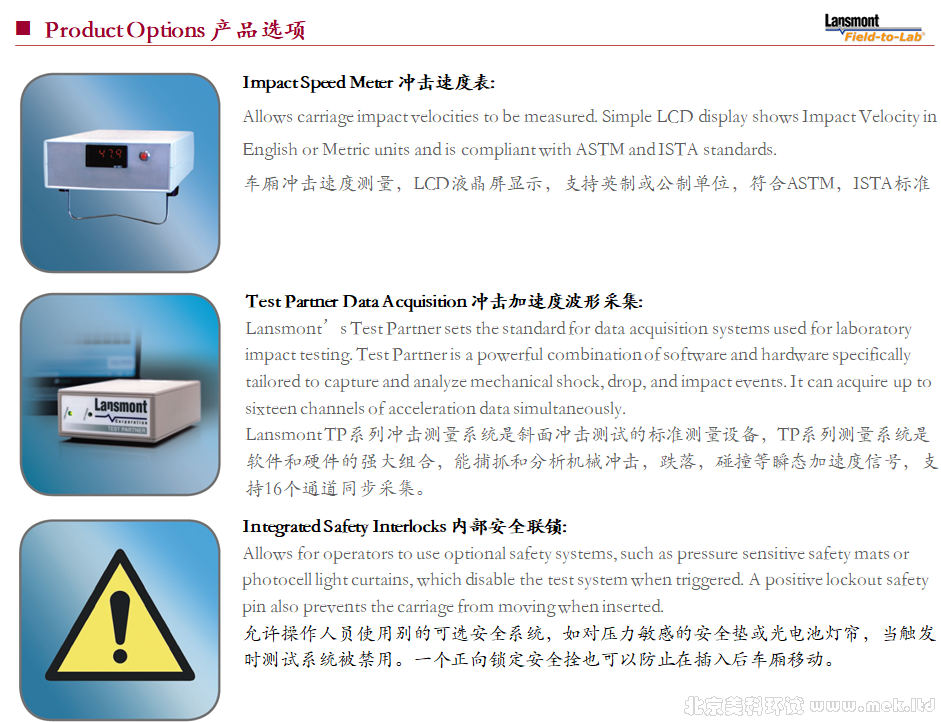

Product Options 产品选项

Impact Speed Meter 冲击速度表:

Allows carriage impact velocities to be measured. Simple LCD display shows Impact Velocity in English or Metric units and is compliant with ASTM and ISTA standards.

车厢冲击速度测量，LCD液晶屏显示，支持英制或公制单位，符合ASTM，ISTA标准

Test Partner Data Acquisition 冲击加速度波形采集:

Lansmont’s Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events. It can acquire up to sixteen channels of acceleration data simultaneously.

Lansmont TP系列冲击测量系统是斜面冲击测试的标准测量设备，TP系列测量系统是软件和硬件的强大组合，能捕抓和分析机械冲击，跌落，碰撞等瞬态加速度信号，支持16个通道同步采集。

Integrated Safety Interlocks 内部安全联锁:

Allows for operators to use optional safety systems, such as pressure sensitive safety mats or photocell light curtains, which disable the test system when triggered. A positive lockout safety pin also prevents the carriage from moving when inserted.

允许操作人员使用别的可选安全系统，如对压力敏感的安全垫或光电池灯帘，当触发时测试系统被禁用。一个正向锁定安全拴也可以防止在插入后车厢移动。
