NEBS-GR63 Seismic Test System 地震测试系统
Overview 总览

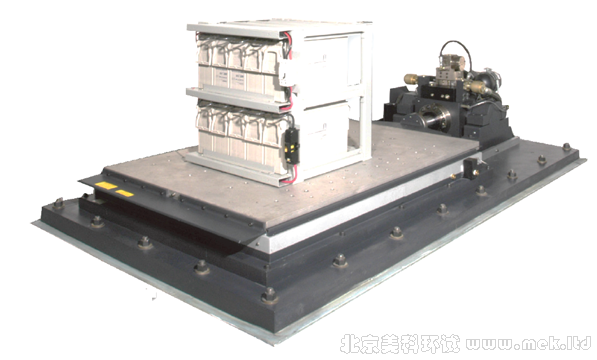

Team Corporation's versatile high-performance earthquake simulation system is the only system of its kind capable of performing all of the Bellcore GR-63 test requirements in a single combined, dual-axis system. By integrating our legendary servohydraulic actuators with our patented T-Film hydrostatic slip table bearings, we've created the perfect high-frequency long stroke vertical/ horizontal system. With our available trunion mounted actuator system, repositioning from vertical to horizontal axis takes very little time.
Team Corporation公司的多功能高性能地震模拟系统是同类系统中**能够在单套双轴系统中执行所有Bellcore GR-63测试要求的地震测试系统。通过将我们传奇式的伺服液压作动器与我们的T-Film静液压滑台轴承集成在一起,创建了完美的高频长冲程垂直/水平测试系统。使用安装在作动器耳轴上的悬挂系统,从垂直轴到水平轴的重新定位也只需很少的时间。
Features 特征
Reliable Servohydraulic Actuator 可靠的伺服液压作动器
Welded Magnesium Vertical Mounting Platform 焊接镁垂直安装平台
48 in2 mounting surface (Vertical and Horizontal) 48 in2安装台面(垂直和水平)
12 inches (300mm) static displacement 12英寸(300mm)静态位移
10.5 inches (262mm) dynamic displacement 10.5英寸(262毫米)动态位移
40 in/sec (1 M/sec) velocity 40英寸/秒(1 M /秒)速度
Accurate Verteq II Waveform Replication 准确的Verteq II波形复现
Available as Trunion Mounted Actuator or Separated System 作动器可安装在耳轴上或分离式系统
Applications 应用领域
NEBS GR-63 Test Requirements NEBS GR-63标准测试要求
Hi Velocity Tests of Heavy Payloads 重载的高速度测试
Internet Routers and Switches 互联网路由器和交换机
Optical Switches 光学开关
Uninterrupted Power Supplies (UPS) 不间断电源(UPS)
Telephone Switch Gears 电话开关装置
其它材料
文章:NEBS认证标准GR-63-CORE:2006地震试验,电信设备抗震测试
标准:GR-63-CORE ISSUE 3 NEBS Requirements Physical Protection
NEBS是“Network Equipment-Building System"的检称。在北美,交换机、网路设备、工业电脑,甚至主机板等直接或间接装置于电信机房的设备,都要求通过NEBS认证,以保障设备的稳定性、可靠性、员工的安全和标准化。该认证主要由AT&T,Qwesl,and Verizon等美国主流电信运营商推动,由一些被授权的第三方实验室来实施。NEBS认证从产品的安全性、电磁兼容性、可靠性以及部分极端环境下(如地震)的可靠性等方面对电信设备提出较高的要求,成为我国电信产品进入北美市场的技术堡垒。GR-63-CORE和GR-1089-CORE是NEBS认证所依据的两个核心标准。GR-1089-CORE主要规定产品在电磁兼容性和电器安全方面的要求,而GR-63-CORE则强调产品的物里结构和可靠性等。
