Bi-Axial - IEEE-344,IEEE-382   双轴振动测试系统

Overview 总览

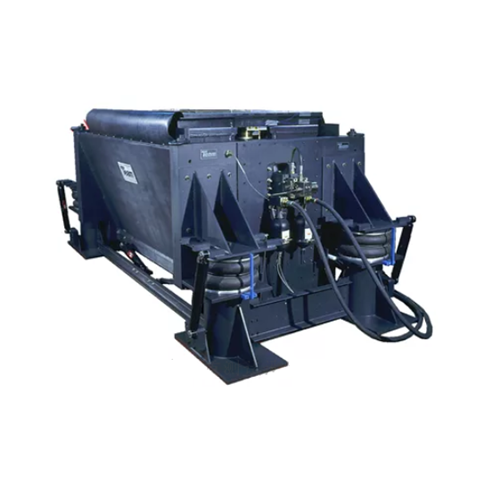

Team Corporation's Bi-Axial test systems are specially designed to reproduce the exacting requirements of IEEE 344 test standards. Using our unique high-performance servovalve-actuator combination, our engineers have successfully created a high frequency, simultaneous dual-axis system with bandwidth capability of 3-500Hz. All IEEE-344 test systems are fully integrated and assembled with a welded steel, air isolated reaction mass.

Team Corporation公司的双向测试系统经过专门设计，可再现IEEE 344测试标准的严格要求。使用我们独特的高性能伺服阀-执行器组合，我们的工程师已成功创建了带宽为3-500Hz的高频同步双轴系统。所有IEEE-344测试系统都完全集成并与焊接的钢制空气隔离反应块组装在一起。

Features 特征

• Reliable Hi-Frequency Servohydraulic Actuator 可靠的高频伺服液压执行器

• Team Patented Pad Bearings 使用Team获得**的滑动轴承

• Dual Axis Simultaneous Motion 双轴同时运动

• Integrated Seismic Base 基础抗震基地

• Air Isolated to 2Hz 空气隔振频率至2Hz

Applications 应用领域

• IEEE-344 Qualification Testing Large test surface area IEEE-344资格认证,测试大表面积产品

• Maintenance free* 免维护*

• Ease of using multiple fixtures 易于使用多个夹具

• Built to interface with Team electronics   于Team公司相关产品电器接口兼容

• IEEE test compliant 符合IEEE测试**

• Single axis component testing 可当单轴组件测试应用

---

‍‍
